VERY DRAFTY - Improvised Scanning Digital Camera

Andrew Davidhazy
Imaging and Photographic Technology Department
School of Photographic Arts and Sciences
Rochester Institute of Technology


This is an article-in-progress, So much in progress that I really do not have much to share with you in terms of explanatory text. The situation is that I have come to a time where there is a lull in enthusiasm for writing but I have lots of enthusiasm for doing stuff.

The result of all this is that I have followed up on the Demonstration Quality cheap scanner based improvised digital camera (wow! that's a mouthful!) and gutted a KYE EasyScan Color Deluxe hand operated scanner (cost me $45) and essentially did the same thing with it as I did with the Kodak one. Read all about it at: Kodak Snapshot Scanner Based Improvised Digital Camera.

So, right now what I would like to do is to share a couple of photographs with you. The photographs are panoramic, encompassing 360 degrees but where with the Kodak gadget I turned the camera by hand to cover 360 degrees, this time I placed the camera on a motorized tripod head (also made from cannibalized parts) and so the scanning is much more regular. The first photograph was taken in my lab and is almost 360 degrees and the next two were taken in front of the School of Photographic Arts and Sciences where I did not only a "visible" B&W record but also made a matching Infrared record of the surrounding landscape.

[photo made with improvised digital camera]

[photo made with improvised digital camera]

I am happy to say that I have now used the array to make a color photograph and it is shown below. There is sort of an interesting story to go along with this photograph. The story is that the lens that I had on the camera was much too long for the proportions of the image that the scanner is programmed to deliver, namely about 4 (inches) by 14 (inches).

I decided to scan anyway, placing the full 360 degree view within the available space. The problem was the length of the image and the result was that everything seemed very compressed.

However, later on I used the Photoshop program to compress the height of the image without changing its length. (Or maybe what I did was change the aspect ratio of the image without changing the file size!) Anyway, the ultimate effect of doing this was that the proportions of the subject in the photograph improved considerably!

[photo made with improvised digital camera]

As you may know already, I am (and have been since 1970 or so) on this "kick" of trying to tie some imaging artifacts associated with scanning photography, and especially panoramic photography, to simple or simplistic statements related to the Theory of Relativity. One of these topics deals with what subjects look like "beyond infinity". Well, IF you can accept that when you make a point into a line you have achieved infinite distortion (such as when the N and S poles of a globe are made into lines as long as the Equator when making flat maps of a spherical Earth) or when you project the polar axis of a sphere that is coaxial with a cylinder and tangent to it at the equator, then the place you'd expect the axis of the sphere to be reproduced or touch the surface of the cylinder is at infinity ... well, IF you buy into this then the panoramic system, with the camera's field of view extending "behind" the camera, so it can see both forwards (reality) and behind the axis of rotation, then the resulting photograph will show those objects "beyond infinity" as being upside down, reversed left to right and 180 degrees out of phase with "reality".*

So now what do you think of THAT!

This first photograph below shows my lab and it is a composite of 5 360 horizontal scans assembled together by hand. You are starting to see beyond infinity!

[photo made with improvised digital camera]

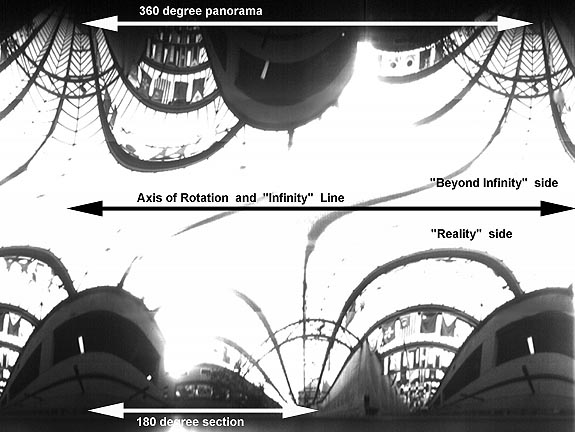

In the next case the camera's lens was fitted with one of those "through the door" surveillance peep gadgets. This enabled the camera to have a very wide angle of view along the CCD array. The camera was then pointed almost straight up and rotated. In this photograph (despite its minor flaws related to leveling and consistent scanning rate, etc.) the relationship between what is in front of the camera ("reality") and what is "beyond infinity" is much more clearly evident. I hope anyway!

[photo made with improvised digital camera]

* Breaking News! ... based on this latest bit of research (and assuming that the top of any observer's position is that which is closest to infinity) actually things beyond infinity only seem to be upside down if looked at from the "reality" point of view. From this point of view subjects also do not look like they are reversed left to to right with the reversal actually happening when the point of view is switched to being beyond infinity. The "180 degrees out of phase" with reality condition is, however, unviolatable and unmistakable.

Experiments are continuing. Major problems to overcome for this "el cheapo" scanning camera is devising a more consistent, steady, scanning pace. The device is now driven by a rubber band powered by the shaft of a low speed gearhead motor. It may be possible to improve on this with a thin "O" ring or maybe driving the hand scanner's data acquisition wheel with something else altogether. There is a certain charm in moving it with a rubber band though!

Also, the "peephole peeper" lens will be replaced soon by a better quality fisheye adapter and then the optics and image sharpness will, hopefully, be better. As of May 20, 2000 I have not yet gotten to this project! But I will soon!


OK, having dealt with making panoramic photographs I also obviously tried my hand at improved quality peripheral portraits and roll-out records of various objects. The principles of such recording are explained in the earlier article that described the use of the Kodak snapshot scanner and the only difference is that the KYE linear array is better and it scans or records continuously, as opposed to intermittently. This yields much better technical quality to the images. Below are a couple of "aesthetic" images:

[photo made with improvised digital camera]

[photo made with improvised digital camera]

And this is a "self-portrait" that is not really peripheral. It was made by the camera just accumulating image data while I moved back and forth across the CCD array several times.

[photo made with improvised digital camera]

Finally, I "improved" on the attachment of the linear array to the 35mm camera's body by flanking the array with two "tongues", one on either side, and directing or controlling this assembly by placing the tongues into a "C" channel in such a manner that the array could be moved across the film plane of the camera. The motion of the array is controlled by winding up a length of sting onto the shaft of a slow turning rate but high torque DC gearhead motor whose speed is adjusted by changing the voltage to the motor.

[photo of improvised digital camera] [photo ofimprovised digital camera] [photo of improvised digital camera]

At the beginning I simply tied the string to one end of one of the "tongues" as shown in the pictures above but being absent minded I forgot to turn off the motor once the array had been pulled across the image plane and this broke a piece of the cardboard. After the second time this happened I cyhanged the method of attachment to the tongue by resorting to a small "C" clamp that simply slid off the tongue once resistance was great enough at the end of the array's travel.

Here is an example of an image done with this image plane scanning system showing nothing more exciting than one coner of my lab (!):

[photo made with improvised digital camera]

And here are a couple of figure "studies" done with this image plane scanning system:

[photo made with improvised digital camera] [photo made with improvised digital camera]

That's it for now!!!


To learn more about scanning imaging techniques as practiced with film-type cameras consult another article:
Basics of Strip Photography.
