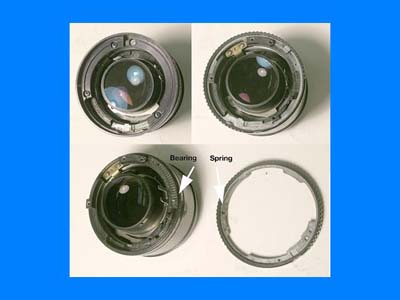

Now remove the next ring. CAUTION - CAUTION This ring contains, within a small depression and covered by graphite lubricant, a small cylindrical bearing behind which there is a small spring. During the process of removing the aperture setting ring
it is quite possible to forget that these things are on the bottom side of the ring and upon lifting of the ring they may fall and be lost forever. That would not be good as you'd lose the ability to
set apertures by click stops.
This ring also has a small latch attached to it. Make sure not to bend it or rip it off. It allows the ring to reach its limits at f/2 and /32 but not exceed them. When replacing this ring later this latch need to be pushed into itŐs place otherwise the ring can not be turned freely.
|
