DIY off-camera monitor screen for DSLR cameras

Prof. Andrew Davidhazy (ret. RIT)
Email: andpph@rit.edu
Web: andpph.com



I was often disappointed by my Canon 5D Mark II not having a flipping or better yet a detachable monitor.

Instances of this happened when I placed the camera on a fully extended tripod and had the camera pointed downwards to make a photograph of something on the floor. Getting one’s eye above the view screen was sometimes impossible. At other times I wanted to shoot from a very low angle or position and getting my face down to the camera was equally difficult.

Cameras with view screens that flip out or up and possibly rotate overcome these problems.

What to do? I knew that my camera had a video out capability and I had used it often while teaching as it allowed me to display on a large screen what was going on with the camera. But my “strange camera position” requirements needed an independently powered and portable display.

We have a rear view camera on our camper that transmits a rear view to a small display or monitor in the cab. This got me thinking. Could I use such a terminal to hook-up my camera to?

Well, to test the practicality of this possibility I bought a $20 5” diagonal TFT color monitor advertised for use with a  car backup camera. It required 12 volts provided by the car battery. It had a video-in connector. And a power connector.

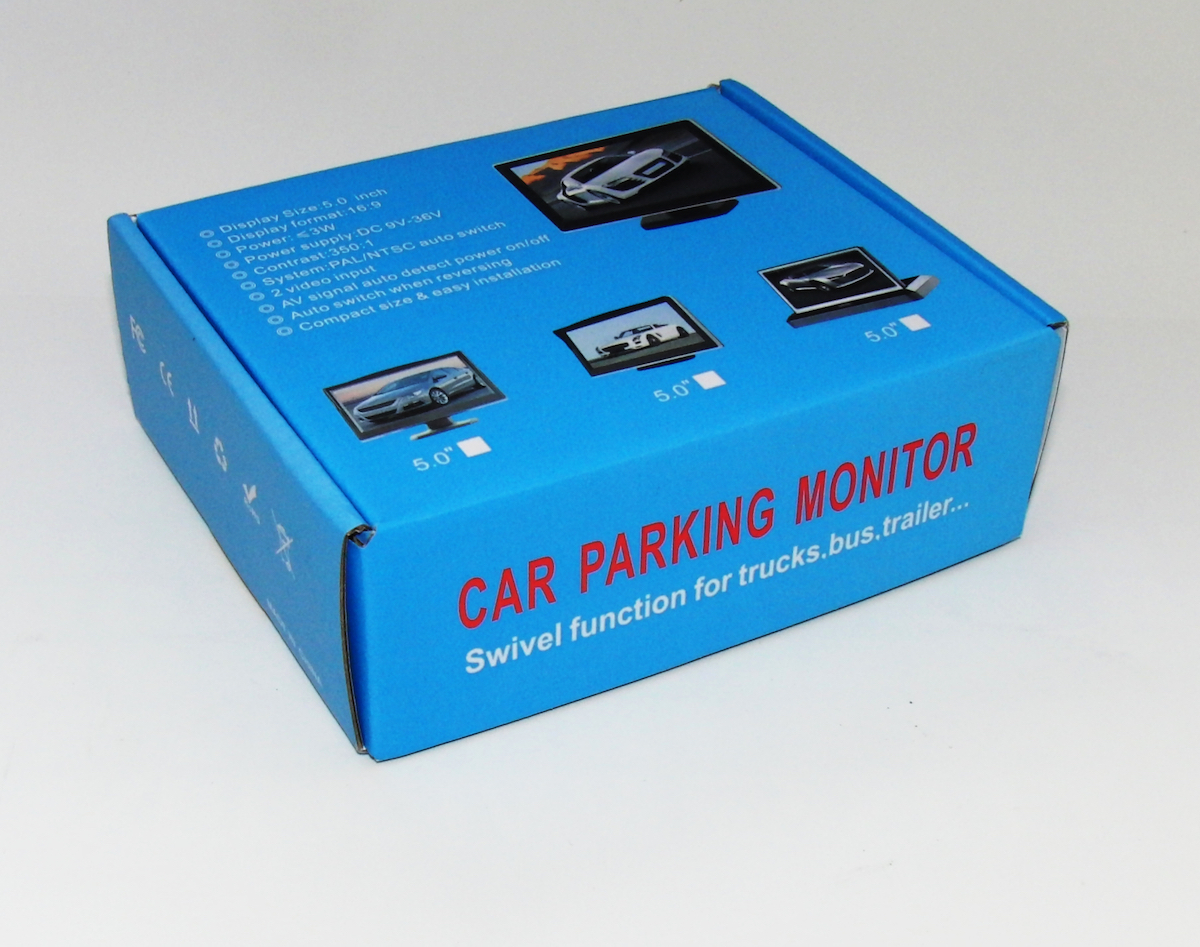

This is the box of the terminal that cost abut $20

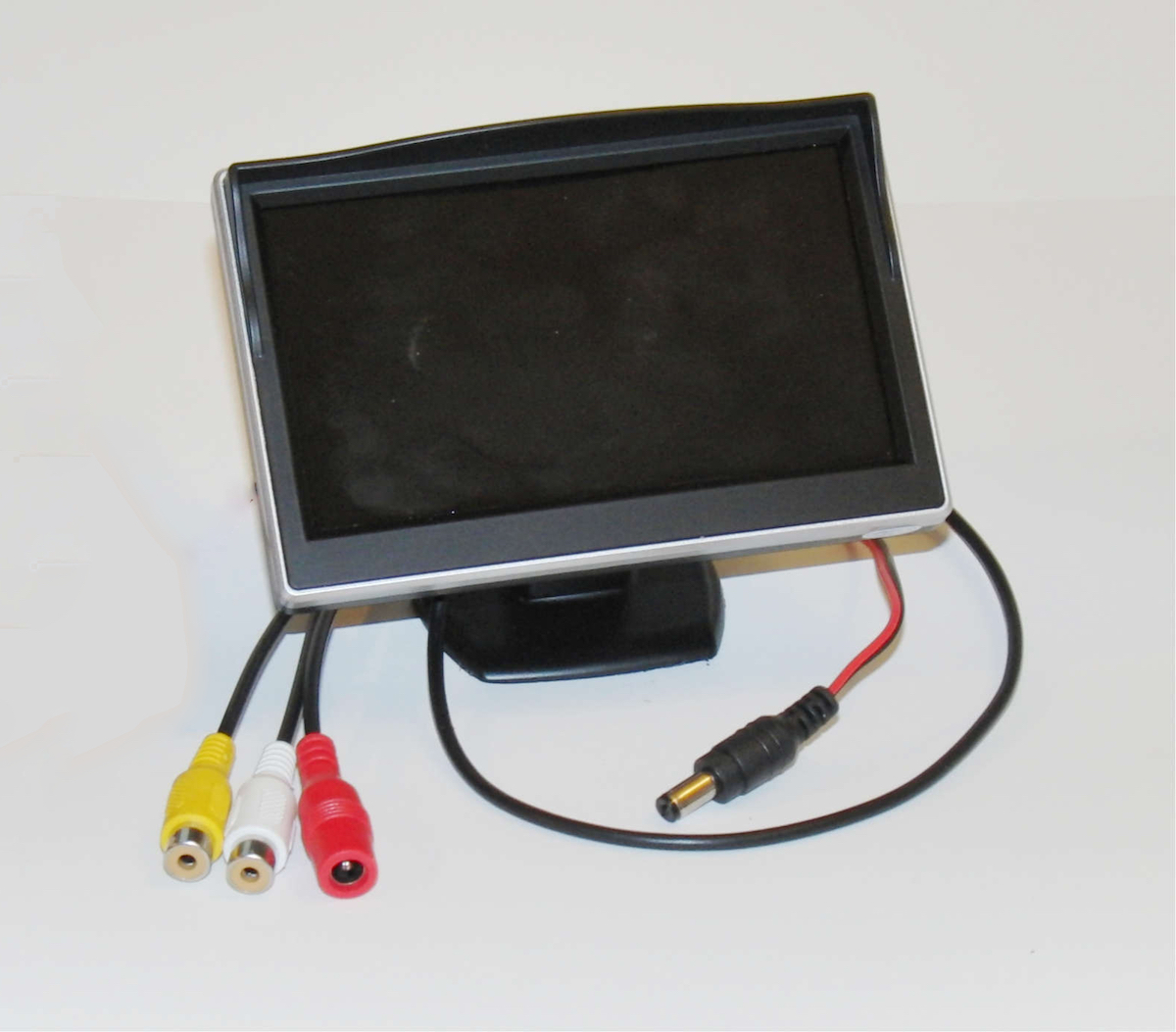

This is what came in the box. The  terminal, its A/V  connectors and a power plug

Knowing that eventually I would want to fasten the monitor to something like a tripod I decided to install a x 20 inch “T” nut on the bottom of the terminals foot.

Since the stand was hollow on the inside I gouged out part of the thin plastic bottom cover and glued the “T nut in place.

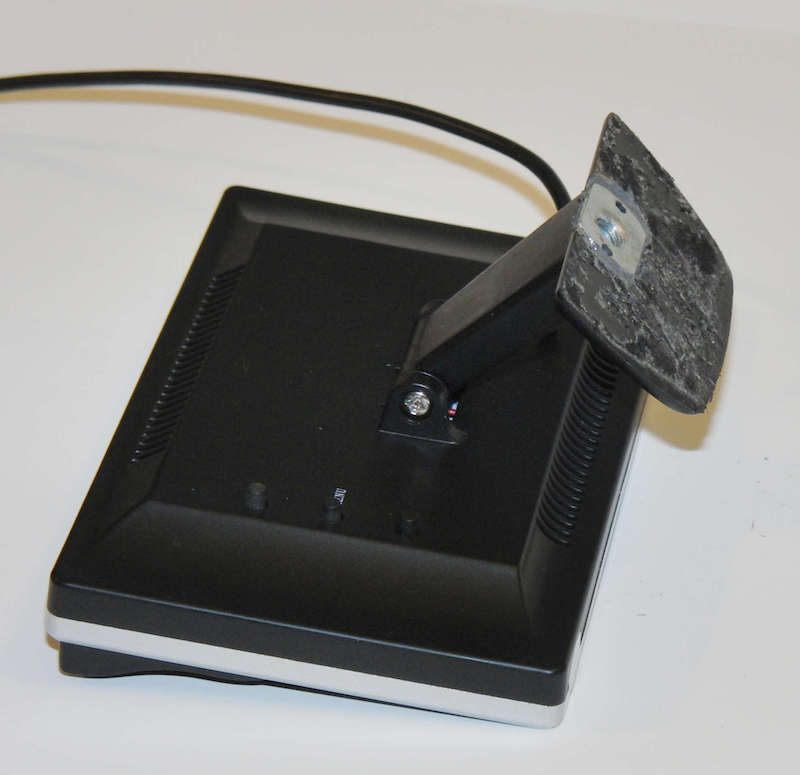

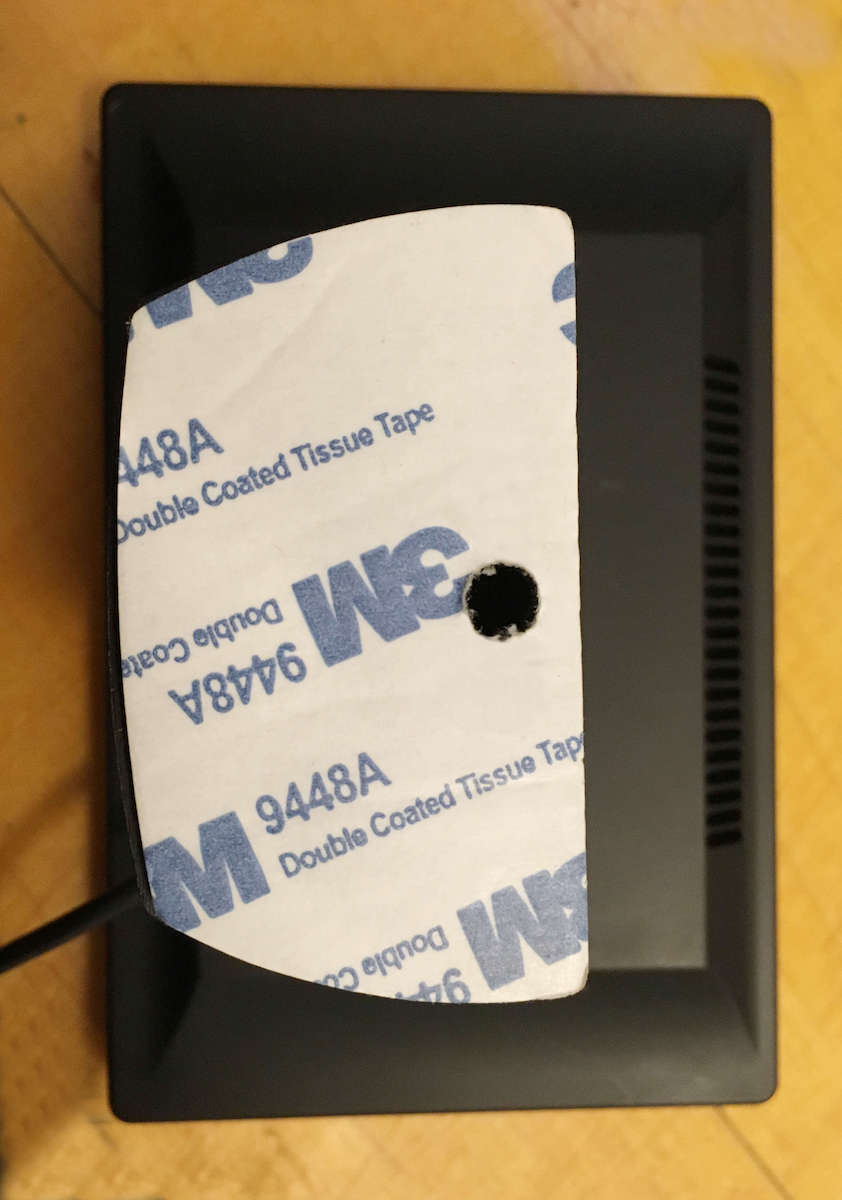

The thin plastic at the bottom of the foot of the pedestal was gouged out to accept a “T” nut so it could be attached to a tripod or something else.

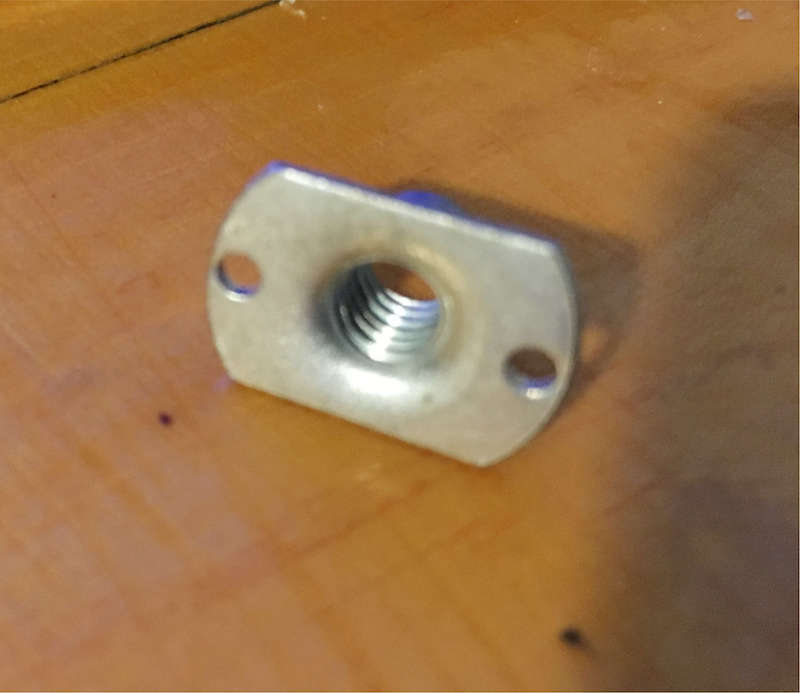

This is the “T nut. It has a “universal” x 20 thread.

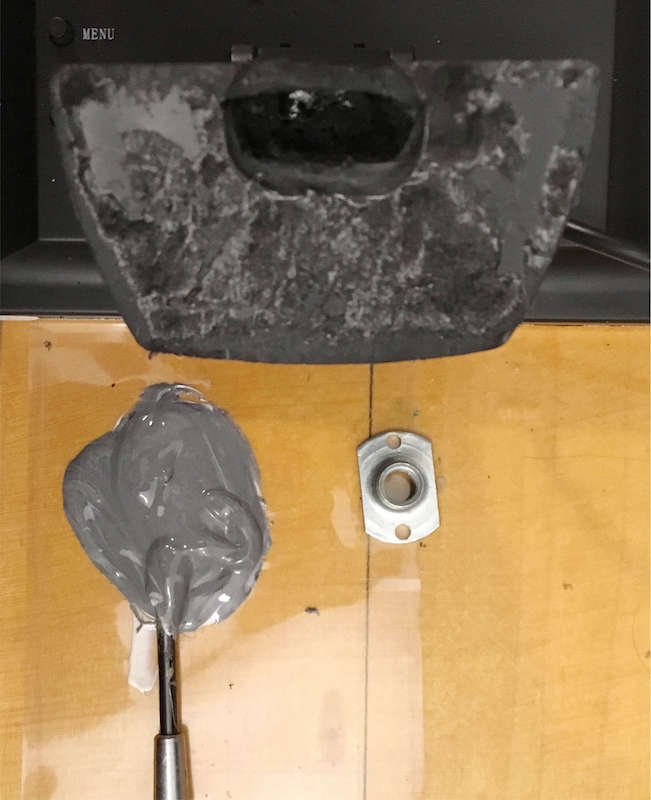

Since the terminal's foot was hollow I attached the “T” nut using JB-Weld to cement it in place.
Here is the completed bottom of the terminals foot.

Going further I found among my left-over items a 3” metal bar with a hot-shoe adapter on one end and a couple of inch holes drilled along its length. Instering this into the camera’s hot-shoe would allow me to fasten the terminal to the camera if I wanted that bit of convenience.

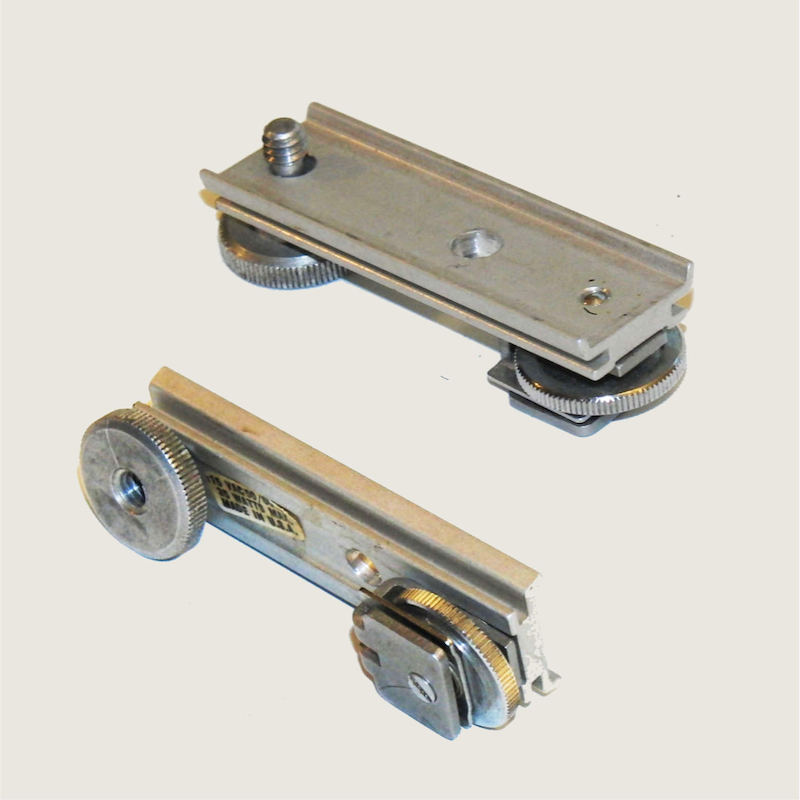

I happened to have this metal bar with a hot shoe at one end and a couple of inch holes along its 3 inch length.

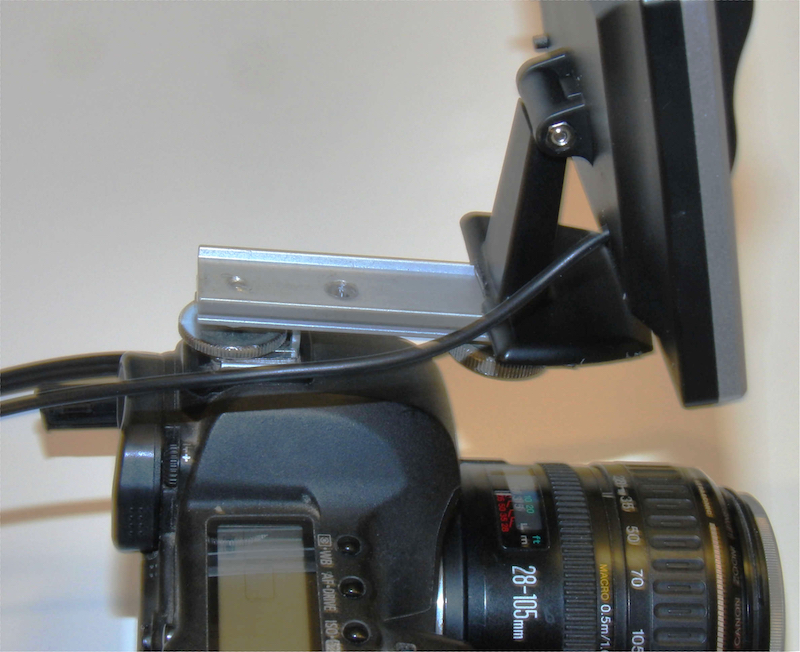

The foot of the terminal could be attached to the bar and the bar inserted in the hot shoe of the camera.

My 5D Mark II camera came with a cable to connect its video-out signal to a terminal with video-in capability. I was quite familiar with it.

Making the video connection from camera to terminal was straightforward using the yellow color-coded RCA connectors.  For power to simulate the car battery I used an 8 pack 1.5 volt per cell battery holder since this would output 12 volts.


To make the battery pack to monitor power connection I used a 9v. battery clip soldered onto the end of the terminal's power supply cable that came with the terminal.

This proved “tricky” as at first I connected the battery clip incorrectly.

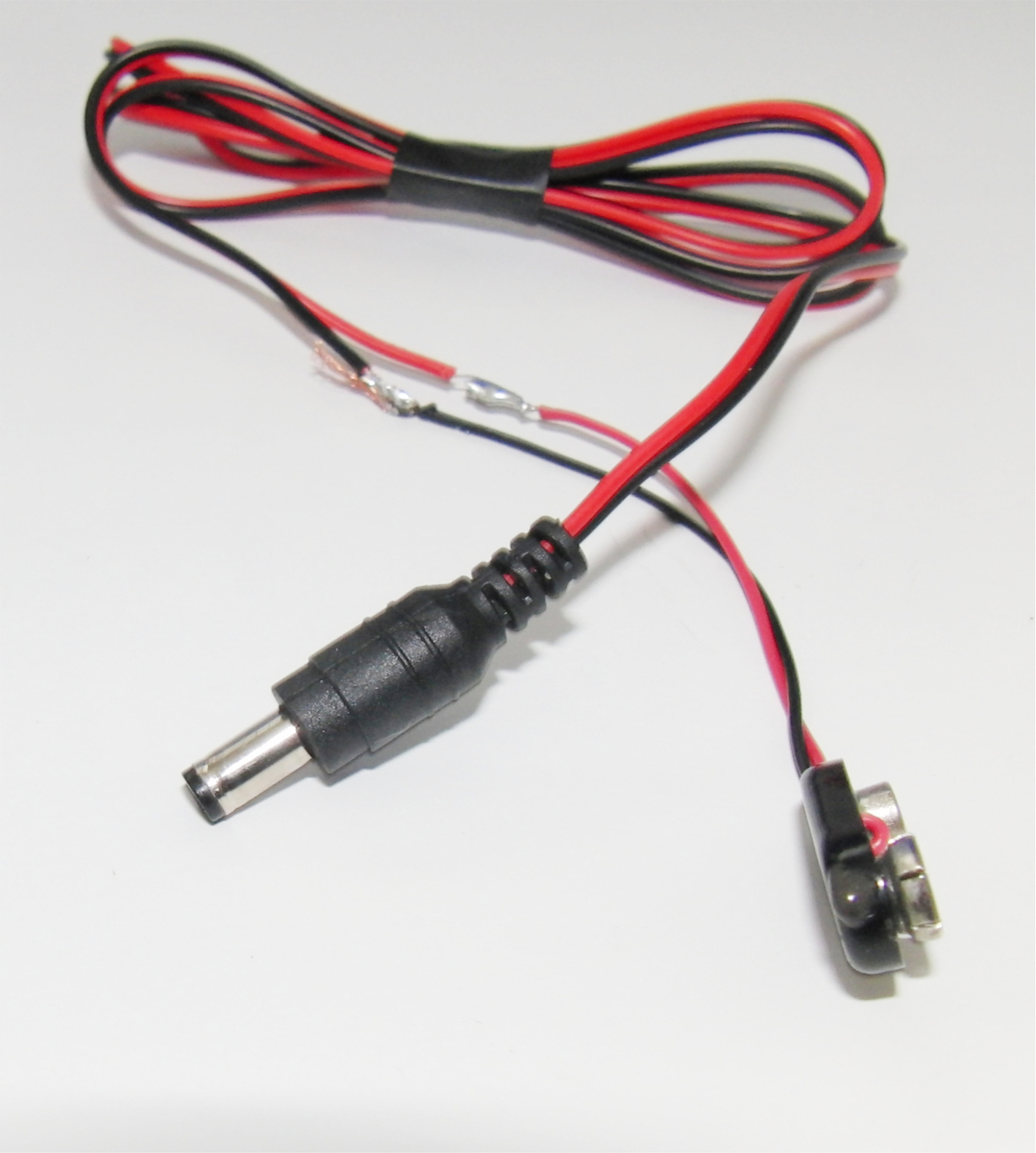

The supplied power cable was soldered to the 9v battery clip. Bare wires were insulated with electrical tape.
When I made the video connections and attached the battery clip to the battery pack and turned on Live View on my camera nothing happened. Needless to say I was disappointed.
However I reversed the polarity of the power cable and suddenly the monitor displayed what the camera's screen would. BTW, the camera screen goes dark when you output video.

The monitor I got does not have an on-off swith. Although the power is connected the screen is blank until a video signal is detected. Interesting. It automatically switches as needed for PAL/NTSC.

Finally I could place the camera on the floor or at the ceiling and could easily see what the camera would be recording. Using the built-in image magnifier also let me adjust focus accurately while away from the camera.

One more thing: I noticed the monitor would work from 9 to 34 volts DC. So I thought I'd try running the monitor with a little 9v battery. I’m not sure how long it would run on this battery but it worked just fine.

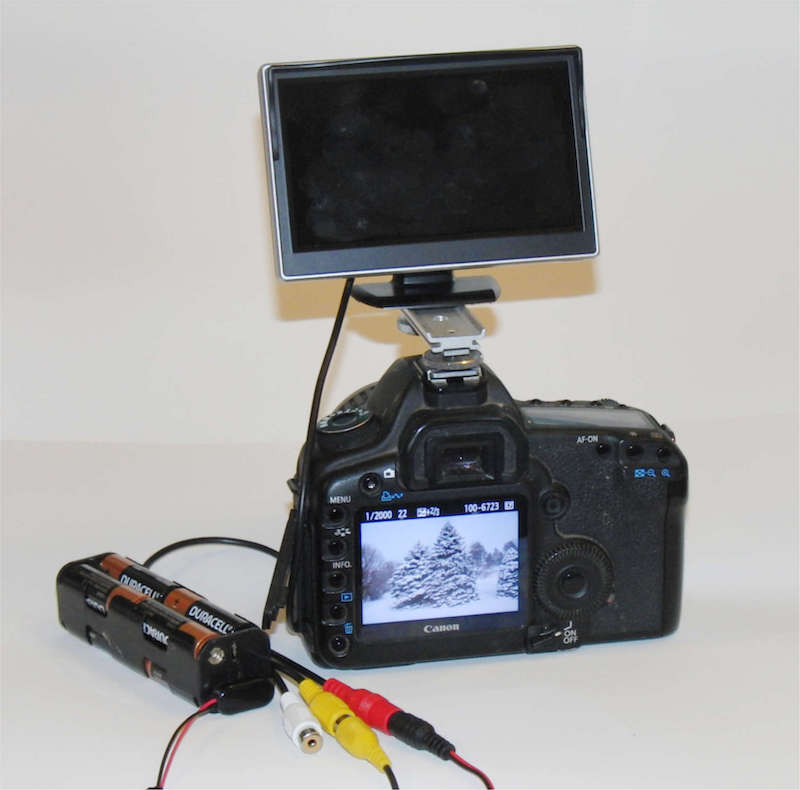

The camera’s video out is connected to the terminal’s video-in (yellow to yellow) and the battery pack power cable connected to the terminal’s power socket (red to red) Then here, with the camera’s video out disconnected, the normal operation of the camera’s display screen shows an image of a snowscape.

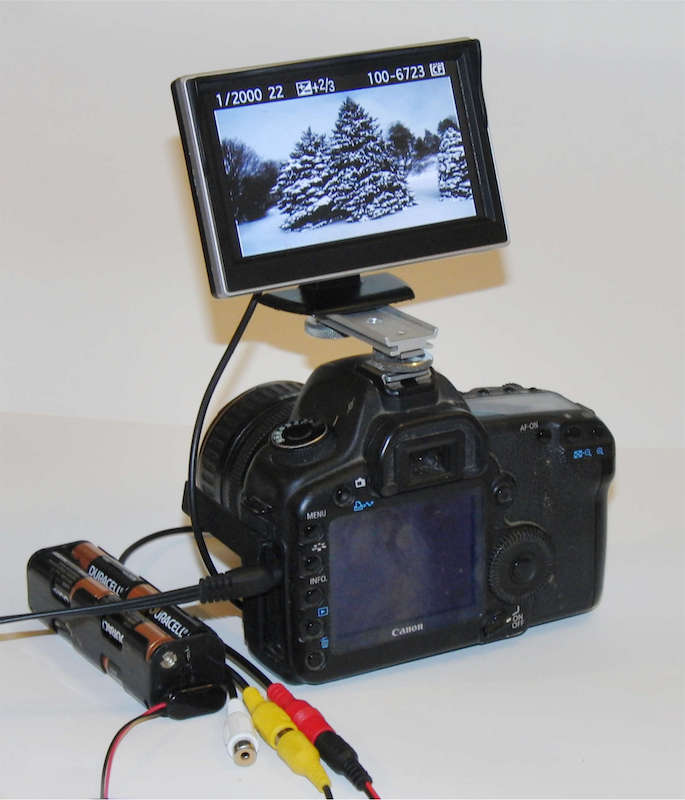

When the video out of the camera is plugged into the camera the terminal now displays the same image as that which the camera’s screen showed before connection

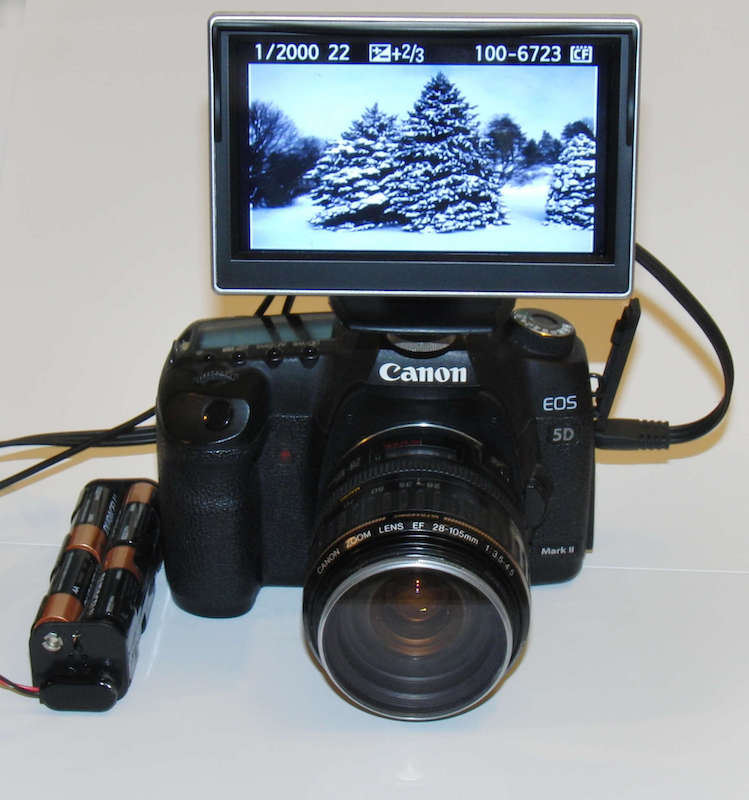

Finally the monitor is turned around on the bracket and now the image that was prevously seen from the back of the camera can be seen from   the front of the camera. Success!

I'm happy!

If any part f this is not clear you can contact me by email at andpph@rit.edu or andpph@davidhazy.org


Parts I used:

One 5 Inch HD TFT LCD Digital Car Rear View Monitor
with free shipping found on eBay.                                     $ 21.49
One 8 cell battery hoder                                                    $  3.49
One 9 volt battery clip                                                       $   .75
Batteries                                                                              ------
                            Total cost about minus batteries about $ 25
